GM730

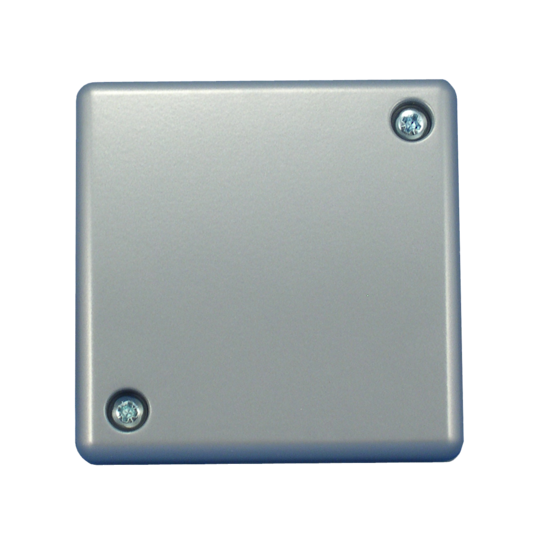

GM730 Seismic Detector (Direct Replacement For GM530)

Product information "GM730 Seismisk detektor"
The GM730 seismic detector offers an outstanding price/performance ratio with advanced functionality for the use in safes, ATMs, ticket machines, night deposit boxes, vaults and strongrooms. It is perfectly suited for protecting valuables repositories made of concrete and steel. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back of the detector will detect forcible removal.


Operating temperature:	-40°C ~ +70°C
Dimensions (W x H x D):	89 x 89 x 22 (mm)
Current consumption:	2.5 mA (rms) 3.5 mA (max. peak)
Weight:	0.285 kg
Approval:	VdS, UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, F&P, NBÚ, VSÖ, SBSC, PIE, MABISZ, BSI, PD6662
DIP switch settings:	3 fixed DIP settings
Alarm output relay:	Opens on alarm, 30 VDC / 100 mA
Power supply:	8 - 16 VDC (12 V nominal)
Housing protection (EN 60529):	IP43
Range:	4 m / 50 m² (Concrete)/ 2 m / 12 m² steel

Mounting Bracket: GMXP0
