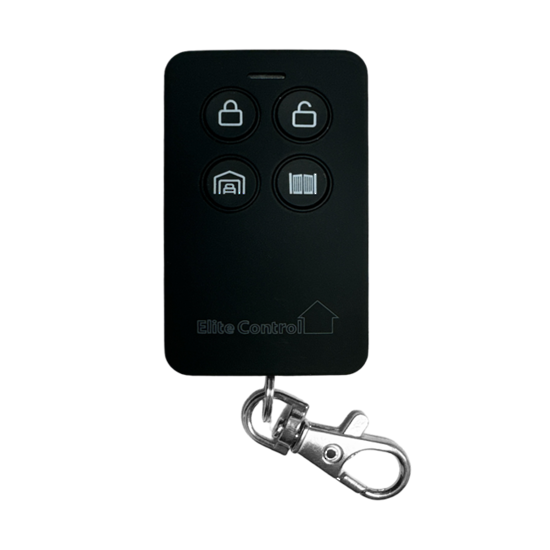

Infinity Remote

Wireless 4 button remote with haptic feedback 916Hz for ESL & EC-i


• Frequency: 916Mhz Modulation: GFSK
• Protocol: infinity 2 way encrypted (freelink)
• Indicator: Haptic & LED Feedback
• Battery Type: 1 x CR2032 lithium
• Battery Life: Up to 5 Years
• Battery Low voltage: 2.2 Volts
• Operating Temperature: -20 to 60 Deg. C
• Environment Humidity: 85% max
• Dimensions: 63mm x 38mm x 11mm
• Weight including Battery: 25g

Requires Infinity Link or Infinity Output

Compatibility Chart:
v1.0.0 to v1.0.2 works on Infinity Link v1.0.2 (915MHZ only)
v1.1.0 works on Infinity Link v1.1.0 & above. Infinity Output v1.1.0 (915MHz only)
v1.2.0 work on Infinity Link v1.1.0 & above. Infinity Output v1.1.0 & above (915 & 916MHz)

Battery model:
CR2032

Works on systems: EC-PCB, EC-i, ESL, ESL-2, ESX, Elite-S, Elite-S Lite, Runner
