B-TRUST24

24 V/DC Swing Gate Controller includes Battery Charging (64 Remote Slots)


APPLICATION

1 or 2 actuators for swing gates

CONTROL UNIT POWER SUPPLY

100 ÷ 250 Vac - 50/60 Hz

MOTORS POWER SUPPLY

24 Vdc / 130 W + 130 W

POWER CONSUMPTION IN STAND-BY

0.8 W

MAIN FUNCTIONS

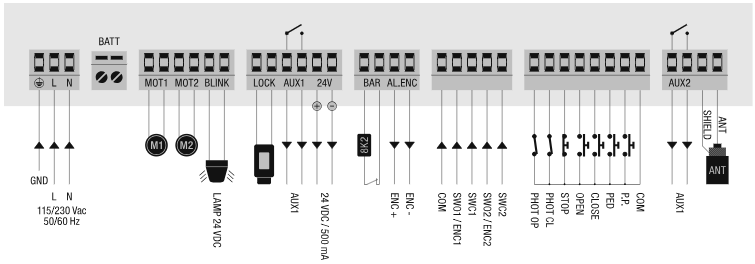

Integrated LCD display | Integrated radio receiver 433.92 MHz 512 codes with ARC coding | Removable terminal boards | Separate limit switch inputs for each motor | Automatic, semi-automatic and Deadman logic | Separate encoder inputs for each motor | Open, close, step-by-step and pedestrian inputs | Input for programmable photocell active in opening-closing and photocell active only in closing | Input for N.C. or 8k2 sensitive edge | Output for electric lock 12/24 Vdc | Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor| Anti-crushing safety through amperometric detection and encoder management | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Separate adjustable slowdowns for each motor | Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors | Built-in energy saving system ESA+ | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger
