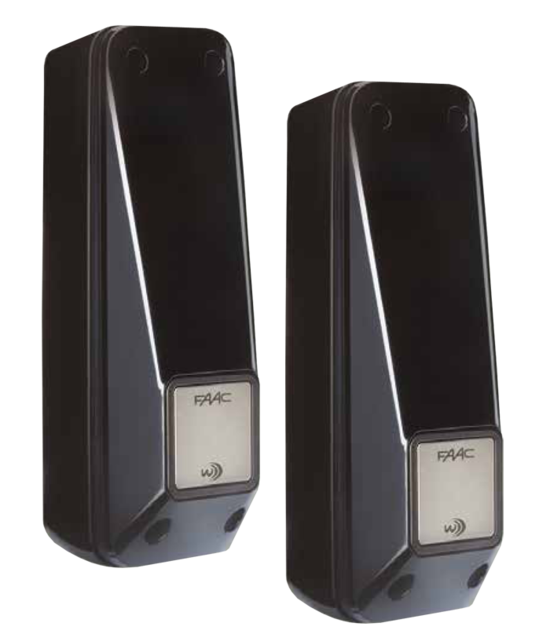

B-PUPILLA XP20D

12-24V AC/DC Safety beam with battery in one side

System with traditional 12/24V receiver power supply and traditional or battery operated transmitter power supply. It avoids having to lay a cable to the transmitter (battery) and features selectable channels which allows the installation of up to 4 pairs of photocells and protection from interference produced by external light sources (such as vehicle LED headlights).

SIMPLICITY AND VERSATILITY OF INSTALLATION
The new photocells, both wall-mounted and column-mounted, allow the mechanical reduction of the beam along the horizontal axis of 180° (-90° +90°) and feature a vertical optical self-alignment function which is particularly useful when the area to protect is not entirely flat.

PERFECT IN ANY ARCHITECTURAL CONTEXT
Extremely compact size: 41 x 130 x 42 mm. Possibility of cable inlet both from the rear and from the underside of the casing (16 mm) and of column mounting.

SUPERIOR PROTECTION
Mould seal on the casing, so there is no risk of it being removed or fitted incorrectly, thereby ensuring the IP54 protection class.

ACCURATE AND RELIABLE ADJUSTMENT
The photocell is housed in a swivel support fitted with a high-performance lens designed to optimise the efficiency of the beam in any direction. The swivel support is locked in the desired position thanks to a hard-wearing quick-fit swivel lock (which can be removed with a screwdriver where necessary).

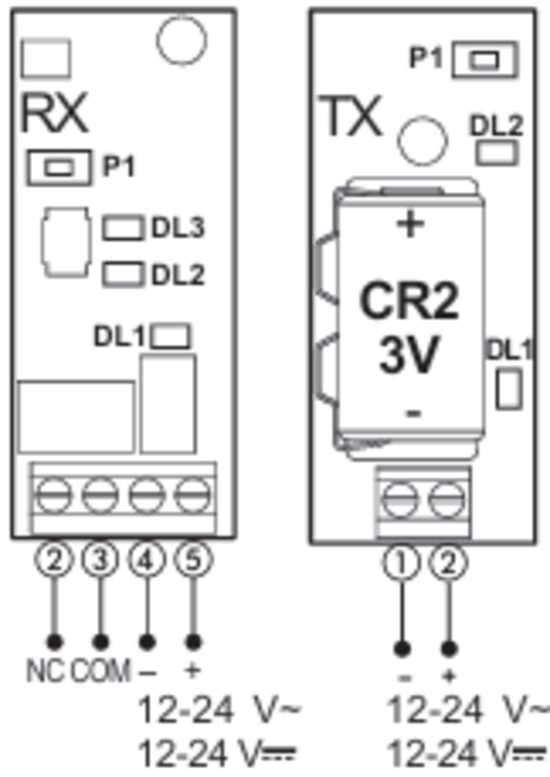

Power supply voltage: Rx: 12-24V~ / V Tx: 12-24V~ / or battery operated
Nominal range: 20m
Type of installation: wall-mounted
Dimensions (LxHxD): 41 x 130 x 42 mm
Horizontal adjustment angle: -90° +90°
Self-alignment angle: ±7° (20m) ±13.5° (5m)
Obstacle detection time: 40ms
Absorbed current: Rx (30mA) + Tx (40mA battery-operated or 5mA at 24V )
Protection class: IP54
Operating room temperature: -20°C ÷ +55°C


** Battery not included, requires CR2 BATTERY **
