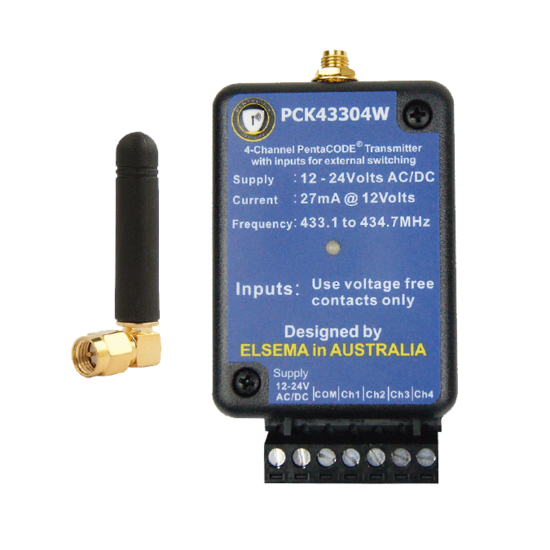

PCK43304W

433MHz PentaCODE^® Transmitter with External Inputs

The PCK43304W is a 4-channel PentaCODE^® transmitter with external inputs. It is designed to accept inputs from external (Normally Open) switches or buttons, enabling the user to initiate the transmitter’s signal manually. It’s commonly used in applications where direct physical control over the transmission is desired, such as in remote control systems, gate openers, or PLC control in industrial automation. The external button acts as a trigger, activating the transmitter to send a signal to a receiver or control system when pressed.

Easy-to-install this hard wired transmitter boosts efficiency and flexibility, ensuring seamless operation. Ideal for site where is it difficult to run cables, this transmitter with external inputs is the perfect solution. Explore now for innovative control options!

The PentaCODE^® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

The PCK43304W transmitter  is compatible with all PCR series receivers, ensuring broad application potential.



Technical Specifications

Frequency
433MHz License free band.
Frequency Hopping Spread Spectrum.

Application
Industrial or Commercial use

Usable Receivers
PCR433 series

Supply
12 Volts AC/DC

Coding
Encrypted coding or 12-way dipswitch

Operating distance
Up to 500 metres

Simultaneous Transmission
Yes

Dimension
70 x 55 x 25 mm

Custom Label Design
Yes. MOQ 100 pcs

Channel Options
4

Antenna
433MHz Series
