MCR91512R

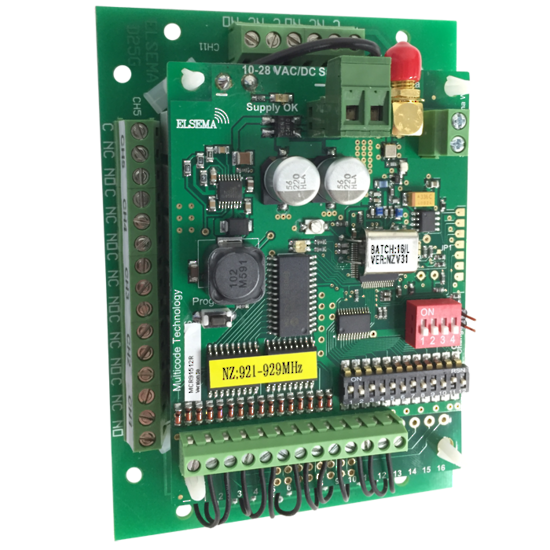

Elsema 10 - 28V AC/DC 12 Channel receiver with relay output 915Mhz

Twelve Channel Multicode Series Receiver. MCR91512R

The MCR91512R receiver is a highly reliable solution featuring 12 relay outputs, each with a robust contact rating of 8 Amps at 240VAC, making it ideal for a wide range of industrial and commercial applications. Designed with user convenience in mind, the MCR91512R includes screw type terminal blocks for easy wiring, a high-quality SMA antenna connector for superior signal reception. For enhanced durability in challenging environments, the MCR91512R is also available in an IP66-rated weatherproof case (MCR91512RE).

Equipped with advanced Multicode Technology (MCT), the MCR91512R offers dual digital coding options: encrypted coding for high-security requirements or a 12-way dipswitch for standard applications. This flexibility ensures that this receiver can adapt to a broad spectrum of applications, providing enhanced security where needed.

The MCR91512R stands out with its sophisticated integration of Frequency Hopping Spread Spectrum (FHSS) and MCT technologies. FHSS, a technology widely used in high-end military and medical equipment, provides exceptional resistance to interference and eavesdropping. This advanced yet user-friendly receiver is perfect for applications where reliability, security, and ease of use are essential.



Technical Specifications

Frequency
915MHz License free band.
Frequency Hopping Spread Spectrum

Application
Industrial or Commercial use

Usable Transmitters
Multicode series

Supply Voltage
12 – 24 Volts AC/DC

Coding
Encrypted coding or 12-way dipswitch

Antenna
915MHz Series

Output Type
Voltage free relay output

Output Modes
Momentary & Latching

Enclosed Version
MCR91512RE

Storage Capability
Unlimited Remotes

Dimension
130 x 94 x 55 mm

Compliance
Click here

User Manual
Click here
