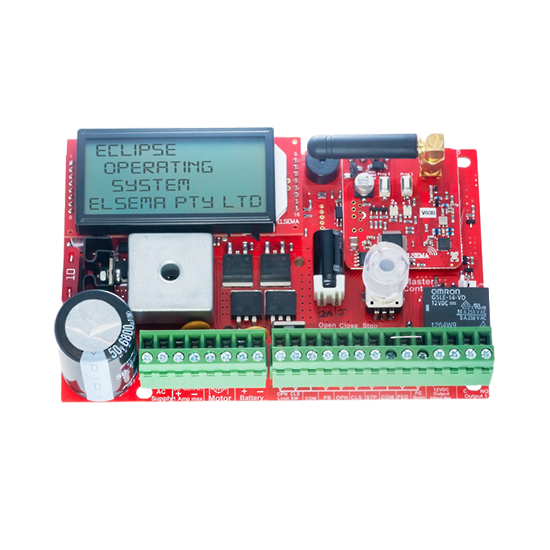

The MCS control card, powered by the Eclipse® operating system, is a compact solution designed for single automatic gates operating at 24V or 12V. Its small size makes it ideal for easy installation within motor gearbox covers, commonly found in sliding gates. Notably, it is recognized as one of the best cards in the industry for retrofitting existing gate motor kits replacing outdated, poor-quality or imported control cards, providing modern functionality with minimal effort.
Developed using direct customer feedback and cutting-edge technology, the MCS card ensures a seamless experience from installation to daily operation. Its user-friendly design features a large LCD display that provides clear, step-by-step instructions, making it easy for users to set up and manage their system. The 1-touch control feature simplifies navigation, allowing for quick adjustments with minimal effort.
What distinguishes the MCS control card is its versatility in handling different gate configurations. The control card can be configured to work with limit switch or current sensing where there are no limit switches.
In addition to its advanced functionality, the MCS control card offers exceptional value at a competitive price. It is a durable, high-performing solution that doesn’t compromise on quality. As one of the most reliable control cards available, it remains a top choice for those seeking a dependable and user-focused gate automation system upgrade.
Technical Specifications
Input Voltage
12 or 24 Volts AC/DC
Motor Voltage
12 or 24 Volts DC
Gate Type
Single up to 120W Motor
Display & Control
Large LCD with One Touch Control
Gate Limit Options
Limit Switch or Current Sensing
Usable Keyring Remotes
PentaFOB® series
PentaCODE® series
+64 9 414 0085
+64 9 414 0085

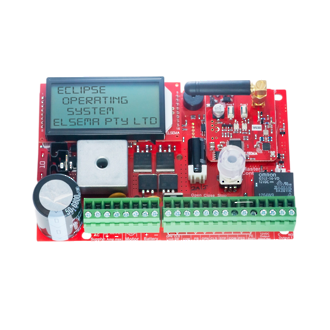

Single Automatic Gate Control Card
The MCS control card, powered by the Eclipse® operating system, is a compact solution designed for single automatic gates operating at 24V or 12V. Its small size makes it ideal for easy installation within motor gearbox covers, commonly found in sliding gates. Notably, it is recognized as one of the best cards in the industry for retrofitting existing gate motor kits replacing outdated, poor-quality or imported control cards, providing modern functionality with minimal effort.
Developed using direct customer feedback and cutting-edge technology, the MCS card ensures a seamless experience from installation to daily operation. Its user-friendly design features a large LCD display that provides clear, step-by-step instructions, making it easy for users to set up and manage their system. The 1-touch control feature simplifies navigation, allowing for quick adjustments with minimal effort.
What distinguishes the MCS control card is its versatility in handling different gate configurations. The control card can be configured to work with limit switch or current sensing where there are no limit switches.
In addition to its advanced functionality, the MCS control card offers exceptional value at a competitive price. It is a durable, high-performing solution that doesn’t compromise on quality. As one of the most reliable control cards available, it remains a top choice for those seeking a dependable and user-focused gate automation system upgrade.
Technical Specifications
Input Voltage
12 or 24 Volts AC/DC
Motor Voltage
12 or 24 Volts DC
Gate Type
Single up to 120W Motor
Display & Control
Large LCD with One Touch Control
Gate Limit Options
Limit Switch or Current Sensing
Usable Keyring Remotes
PentaFOB® series
PentaCODE® series
Control Card Dimensions
140 x 90 x 45 mm
Operating System
User ManualEclipse Operating System (EOS)
Click Here
Connection Diagram
Click Here
