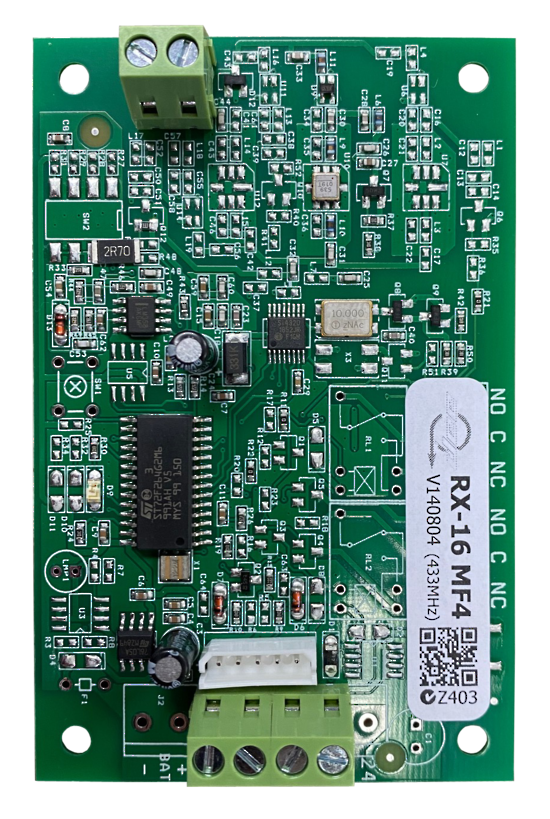

RX-16 MF4

*Discontinued*

This receiver wires onto the keypad bus system, one of the wide range of Elite Control products.

It fixed to Receives 433Mhz transmissions.

Multiple receivers can be wired together,  getting better range coverage and/or different frequencies.

Compatible With:
- ESX-1
- ESL-2
- ESL
- Elite S / S-Lite
- Elite 64
- Elite 16D v6
- Elite 8D

Current: 30mA@12VDC

Supported Wireless Devices:
- TX-Light/433  (PCB transmitter)
- DFW-433  (wireless PIR)
- HM-FW-433  (wireless smoke)
- RM-0001A  (4 button Pendant)
- SX-TR04/433  (4 button Pendant)
- TX-1/433  (1 button IP65 Boxed Transmitter)
-JN-DCA-20/50/200 (wireless point to point beams)

Discontinued Supported Wireless Devices:
- DMP-433  (wireless PIR)


WILL NOT WORK WITH TRX RANGE OF DEVICES
